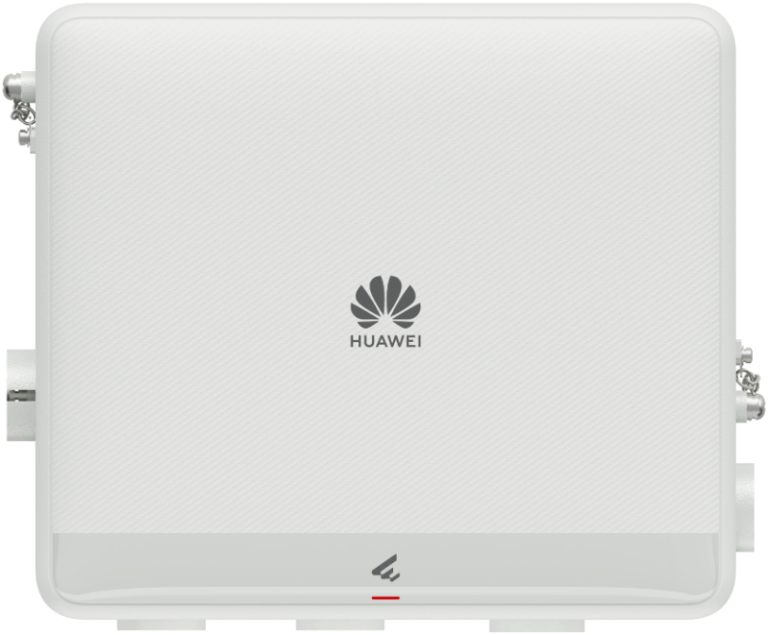

Huawei eKitEngine AP761 Outdoor Wi-Fi 6 Access Point (Model: AP761) is an IP68 weatherproof wireless access point engineered with optical SFP and Gigabit copper ports, 28 dBm high power, and 500-meter long-range coverage for harsh outdoor environments. It supports dual-radio Wi-Fi 6 (IEEE 802.11ax) delivering up to 1.775 Gbps aggregate wireless data rate with built-in smart antennas and 6kV surge protection.
Constructed in an IP68-certified dustproof and waterproof hardened housing, the access point operates across an extreme temperature range of -40°C to +65°C. It provides 1 fixed 10/100/1000BASE-T Gigabit RJ45 port (supporting PoE input) and 1 dedicated GE SFP optical slot for direct long-reach optical backhaul.
Technical Specifications
| Component / Parameter | Technical Specification |
|---|---|
| Product Line | Huawei eKitEngine Series |
| Model / SKU | Huawei eKitEngine AP761 |
| Ingress Protection | IP68-Certified Weatherproof, Dustproof, and Waterproof Hardened Housing |
| Wi-Fi Standard | Outdoor Wi-Fi 6 (IEEE 802.11ax) Dual-Radio (2.4 GHz & 5 GHz Concurrent) |
| Maximum Wireless Speed | Up to 1.775 Gbps Aggregate Wireless Data Rate |
| Interfaces | 1 × 10/100/1000BASE-T Gigabit RJ45 Port (PoE In) + 1 × GE SFP Optical Slot |
| Transmit Power | 28 dBm High-Power RF Output with 6kV Surge Protection |
| Antenna & Range | Built-In Smart Antennas with 500-Meter Long-Distance Optimal Coverage |
| User Capacity | Recommended: 120 Concurrent Users | Maximum: 1024 Access Users |
| Operating Temperature | -40°C to +65°C Extreme Temperature Operating Range |
Mechanical & Environmental Specifications
| Parameter / Feature | Specification / Rating |
|---|---|
| Ingress Protection | IP68 Waterproof and Dustproof Certification |
| Operating Temperature Range | -40°C to +65°C Extreme Industrial Range |
| Surge Protection | 6kV Built-In Surge Protection |
| Heat Dissipation Mode | Natural Heat Dissipation |
| Mounting Mechanism | Pole and Wall Mounting Bracket Assembly with Heavy-Duty Clamps |
Key Features & Highlights
- IP68 Weatherproof Hardened Body: Fully sealed against heavy rain, dust storms, UV radiation, and salt fog corrosion.
- Direct SFP Optical Backhaul: Dedicated GE SFP optical slot enables direct fiber connection back to central server rooms.
- Expansive 500-Meter Coverage: 28 dBm high-power RF output and smart antennas deliver long-range outdoor wireless connectivity.
- Extreme Temperature Operation: Certified for reliable continuous operation in harsh climates from -40°C to +65°C.
- 6kV Surge Protection: Built-in lightning and surge protection safeguards equipment from outdoor electrical transients.
- High Concurrency Capacity: Supports 120 recommended active users and up to 1024 total access users.
Recommended Applications
The Huawei eKitEngine AP761 Outdoor Wi-Fi 6 Access Point is engineered for access and aggregation scenarios across commercial environments:
- Outdoor university campuses and public parks providing expansive 500-meter wireless coverage across large grounds.
- Industrial logistics yards and seaports requiring IP68-hardened and fiber-connected access points surviving salt fog and dust.
- Direct SFP optical backhaul connecting remote APs directly to central server rooms over fiber.
- Outdoor smart cities providing high-capacity public Wi-Fi for municipal plazas, stadiums, and streetscapes.
- Mining and energy facilities operating reliably under extreme outdoor temperatures from -40°C to +65°C.
Installation & Operating Environment

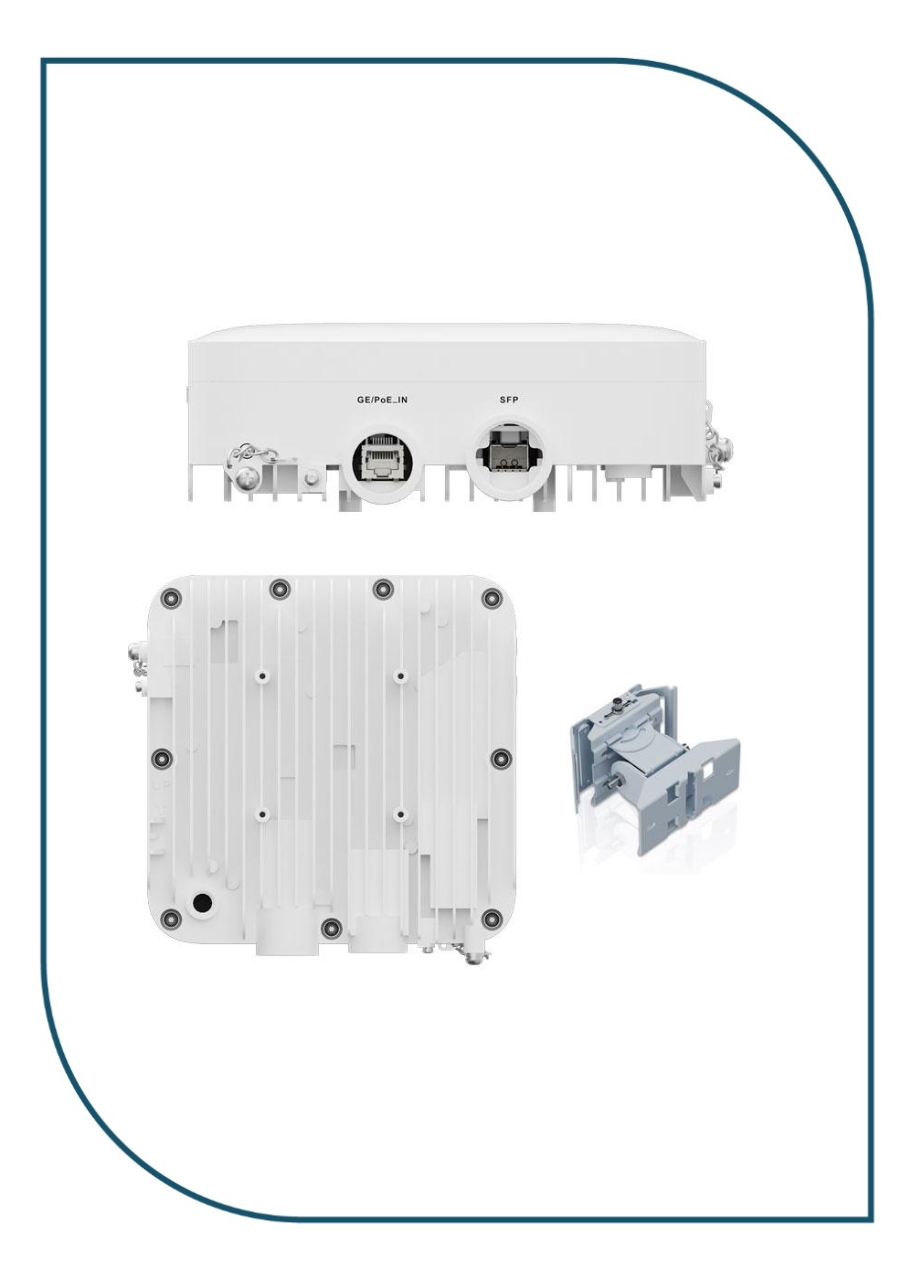

The Huawei eKitEngine AP761 Outdoor Wi-Fi 6 Access Point features an IP68-rated hardened housing supplied with a pole and wall mounting bracket assembly with heavy-duty clamps, waterproof RJ45 glands, and SFP optical gland caps. Operating across -40°C to +65°C with 6kV surge protection, it delivers continuous uptime in extreme outdoor environments.
