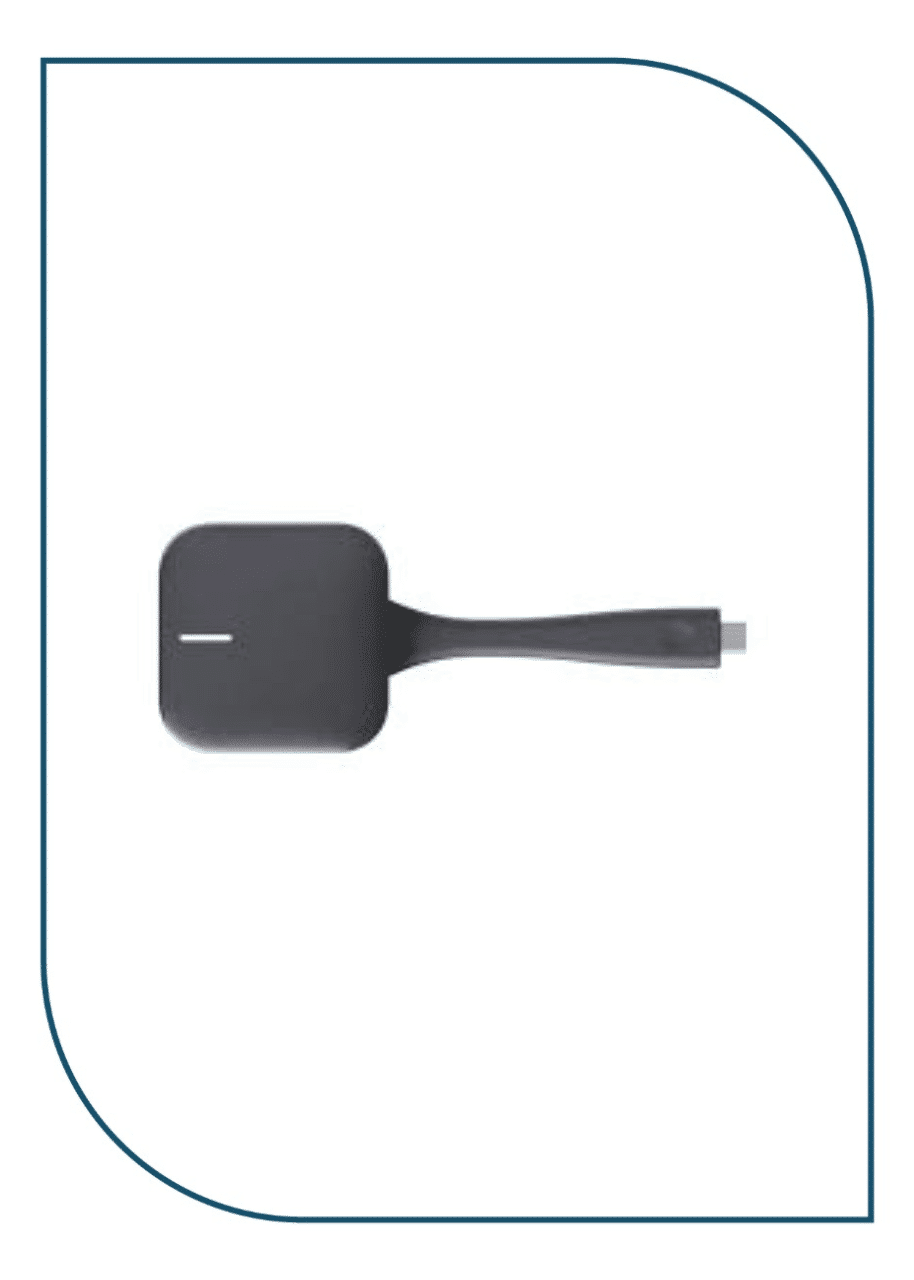

HUAWEI IdeaShare Key Type-C Wireless Projection Dongle (Model: IdeaShare Key USB-C) is a reversible USB-C wireless projection transmitter engineered with 4K Ultra HD resolution to enable instant, driver-free screen casting from modern laptops, MacBooks, and tablets to IdeaHub displays. It features a reversible USB Type-C interface, 3840 × 2160 @ 30fps output, DisplayPort over USB-C video capture, and hardware auto-pairing.
Eliminating USB-A adapters and cable clutter, the dongle plugs directly into USB-C ports on Apple MacBook, iPad Pro, and Windows PCs. With a single press of the central projection button, encrypted Wi-Fi Direct peer-to-peer transmission streams crisp 4K content with synchronized audio.
Technical Specifications
| Component / Parameter | Technical Specification |
|---|---|
| Product Line | Huawei IdeaHub Collaboration Accessories |
| Model / SKU | IdeaShare Key USB-C |
| Hardware Interface | Reversible USB Type-C Connector with DisplayPort Alt Mode Support |
| Projection Resolution | Up to 4K Ultra HD (3840 × 2160 @ 30fps) with Real-Time Audio Sync |
| Driver Architecture | True Plug-and-Play (No Software or Driver Installation Required) |
| Transmission Security | WPA2 / WPA3 Encrypted Wireless Direct Connection to IdeaHub |
| Device Compatibility | Windows Laptops, Apple MacBooks, iPad Pro, Android Devices with USB-C |
| Display Compatibility | HUAWEI IdeaHub S2, S3, B2, B3, Board 2, and Board 3 Pro Series |
Mechanical & Environmental Specifications
| Parameter / Feature | Specification / Rating |
|---|---|
| Form Factor | Sleek Circular Dongle with One-Touch Center Button and LED Status Ring |
| Status Indication | Surrounding Dual-Color LED Ring (White Connected / Blue Projecting) |
| Enclosure Material | Scratch-Resistant Polycarbonate Shell |
| Power Supply | Direct USB-C Bus Power (No External Adapter Required) |
| Operating Environment | Commercial Indoor Meeting and Conference Rooms |
Key Features & Highlights
- Reversible USB-C Connection: Plugs directly into modern MacBooks, Ultrabooks, and tablets without USB adapters.
- Instant One-Touch Sharing: A single press of the central button projects laptop screen content instantly to the IdeaHub.
- Native 4K UHD Streaming: Streams 3840 × 2160 resolution video at 30fps with low latency and real-time audio.
- Zero Driver Installation: True plug-and-play architecture requires no software downloads, administrative rights, or apps.
- Secure Peer-to-Peer Link: Encrypted WPA2/WPA3 wireless link protects commercial presentations from interception.
- Universal Screen Support: Works across the complete line of IdeaHub S-Series, B-Series, and Board interactive displays.
Recommended Applications
The HUAWEI IdeaShare Key Type-C Wireless Projection Dongle is engineered for access and aggregation scenarios across commercial environments:
- Apple MacBook and modern ultrabook users requiring native USB-C 4K screen sharing without dongle adapters.
- Executive boardrooms delivering instant one-touch wireless presentations with low-latency audio/video synchronization.
- iPad Pro and USB-C mobile tablet users presenting directly from handheld devices during collaborative sessions.
- Secure commercial environments demanding encrypted peer-to-peer screen casting outside corporate Wi-Fi networks.
- Agile scrum meetings switching seamlessly between multiple laptop presenters with a tap of the projection key.
Installation & Operating Environment
The HUAWEI IdeaShare Key Type-C Wireless Projection Dongle pairs automatically by inserting it into the IdeaHub USB-C port once, and then plugging it into any laptop or tablet USB-C port for instant one-touch wireless screen sharing. Powered directly via the USB-C bus, it requires no external batteries or adapters.
