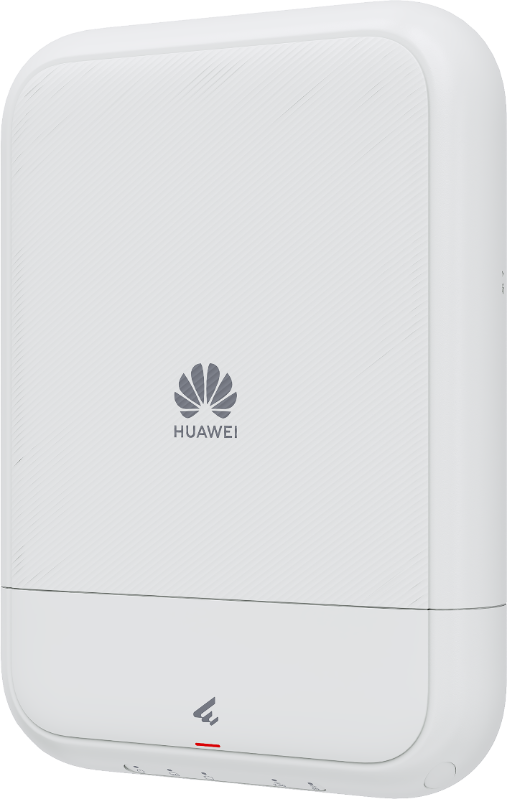

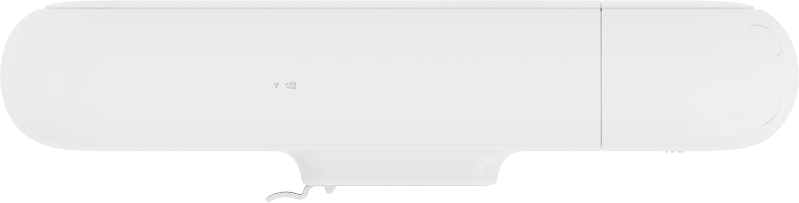

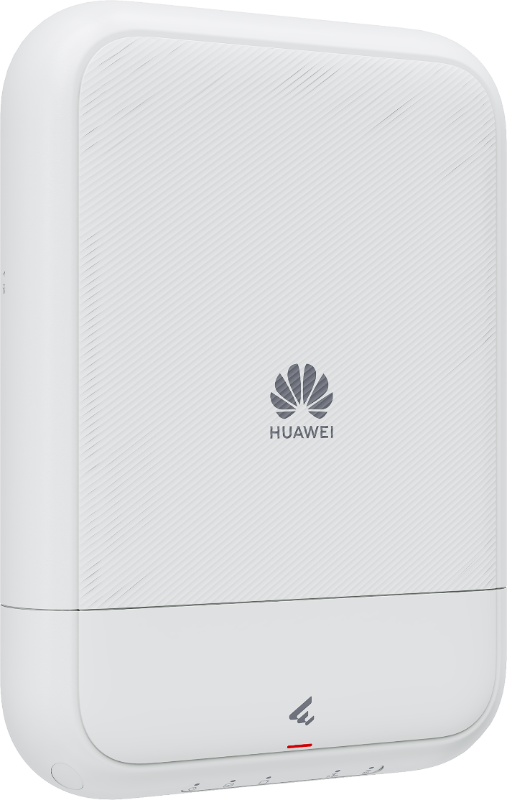

Huawei eKitEngine AP771 Outdoor Wi-Fi 7 Access Point (Model: AP771) is an IP68 weatherproof access point engineered with Wi-Fi 7 technology, built-in omnidirectional antennas, and 3.57 Gbps throughput to deliver 360-degree high-speed coverage for outdoor environments. It supports outdoor dual-radio IEEE 802.11be architecture with Multi-Link Operation (MLO), delivering 28 dBm high-power RF output and built-in surge protection.
Housed in an IP68 weatherproof, waterproof, and UV-resistant industrial housing, the access point operates across an extreme industrial temperature range of -40°C to +65°C. It supports 130 recommended concurrent users (up to 256 access users) with management through the Huawei eKit Cloud Platform, Leader AP, and hardware AC controllers.
Technical Specifications
| Component / Parameter | Technical Specification |
|---|---|
| Product Line | Huawei eKitEngine Series |
| Model / SKU | Huawei eKitEngine AP771 |
| Protection Rating | IP68 Weatherproof, Waterproof, and UV-Resistant Industrial Housing |
| Wi-Fi Standard | Outdoor Next-Gen Wi-Fi 7 (IEEE 802.11be) Dual-Radio |
| Maximum Wireless Speed | Up to 3.57 Gbps Aggregate Data Rate with Multi-Link Operation (MLO) |
| Antenna Architecture | Built-In 360-Degree Omnidirectional Antennas (130-Meter Coverage Distance) |
| Transmit Power | 28 dBm High-Power RF Output with Built-In Surge Protection |
| User Capacity | Recommended: 130 Concurrent Users | Maximum: 256 Access Users |
| Operating Temperature | -40°C to +65°C Extreme Industrial Range |
| Management Interface | Huawei eKit Cloud Platform, Leader AP, Hardware AC Management |
Mechanical & Environmental Specifications
| Parameter / Feature | Specification / Rating |
|---|---|
| Ingress Protection | IP68 Waterproof, Dustproof, and UV-Resistant Rating |
| Operating Temperature Range | -40°C to +65°C Industrial Operating Range |
| Surge Protection | Built-In High-Level Surge Protection |
| Heat Dissipation Mode | Natural Heat Dissipation |
| Mounting Architecture | Pole and Wall Mounting Bracket Assembly with Clamps |
Key Features & Highlights
- Outdoor Wi-Fi 7 Technology: 3.57 Gbps aggregate speed with Multi-Link Operation (MLO) delivers ultra-low latency wireless outdoors.
- 360-Degree Omnidirectional Coverage: Integrated omnidirectional antennas provide uniform 130-meter perimeter wireless coverage.
- IP68 Industrial Hardening: Completely sealed against torrential rain, dust storms, UV radiation, and temperature extremes.
- 28 dBm High-Power Output: High-power RF amplifiers ensure robust signal penetration through open terrain.
- Extreme Climate Durability: Operates reliably from -40°C in freezing winters to +65°C in intense desert heat.
- Cloud & Leader AP Control: Zero-controller Leader AP clustering or centralized enterprise management via Huawei eKit.
Recommended Applications
The Huawei eKitEngine AP771 Outdoor Wi-Fi 7 Access Point is engineered for access and aggregation scenarios across commercial environments:
- Outdoor commercial plazas and public squares providing 360-degree omnidirectional Wi-Fi 7 coverage for high-density crowds.
- Resort and hotel grounds delivering seamless outdoor pool and garden Wi-Fi for guests with MLO low-latency roaming.
- Harsh environmental installations requiring IP68-certified operation in heavy rain, dust storms, and extreme sun.
- Smart agriculture and marinas establishing wide-area 130-meter perimeter wireless for IoT sensors, boats, and cameras.
- Municipal smart city projects deploying high-reliability outdoor Wi-Fi 7 infrastructure with centralized cloud control.
Installation & Operating Environment
The Huawei eKitEngine AP771 Outdoor Wi-Fi 7 Access Point features an IP68 weatherproof housing supplied with a pole and wall mounting bracket assembly with clamps, waterproof RJ45 cable glands, and sealing gaskets. Operating across -40°C to +65°C, it ensures reliable continuous uptime in demanding outdoor environments.
