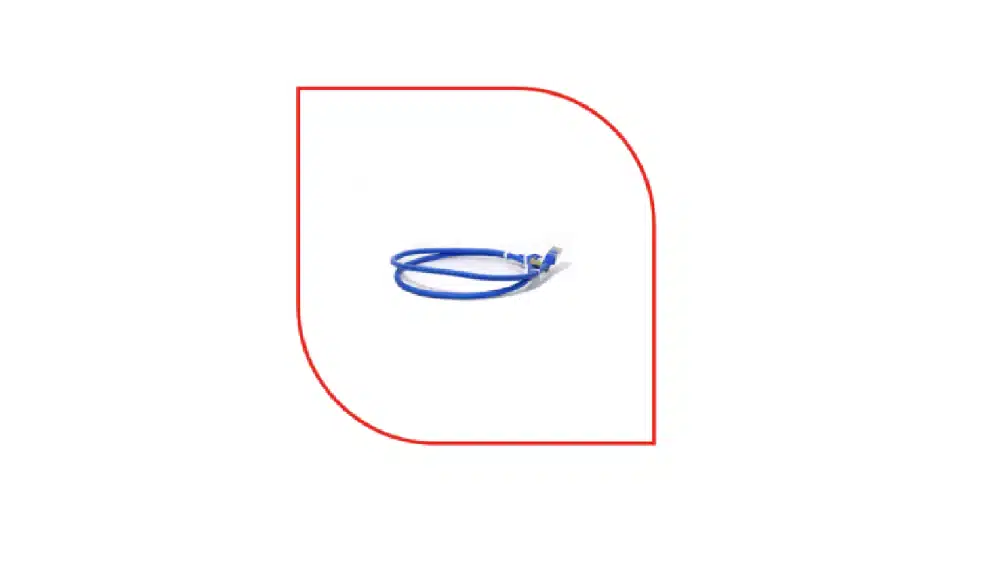

The ProLink CAT6A Patch Cord 1m LSZH Blue (Model: PL-PC-U6A-1BL) is a commercial-grade U/UTP Ethernet cable built specifically for professional structured cabling systems. Measuring 1 meter in length, this high-visibility blue patch cord is ideal for connecting network devices, server racks, and telecommunications outlets while minimizing cable clutter. Supporting operating frequencies up to 500 MHz, it delivers reliable, high-speed Ethernet performance. Its Low Smoke Zero Halogen (LSZH) jacket enhances indoor fire safety, making it an excellent choice for corporate LANs, data centers, and commercial networking infrastructures.
Technical Specifications
| Component / Property | Technical Specification |
|---|---|
| Product Name | ProLink CAT6A Patch Cord 1m LSZH Blue |
| Model / SKU | PL-PC-U6A-1BL |
| Cable Length / Color | 1 Meter / Blue |
| Wiring Configuration | T568B Standard |
| Cable Type / Shielding | U/UTP (Unshielded) |
| Conductor Gauge | AWG23/7 Stranded Conductor |
| Number of Pairs | 4 Pairs |
| Nominal Impedance | 100 Ohms |
| Outer Cable Diameter | Maximum 6.0 mm |
Mechanical Specifications
| Component / Material | Operational Rating / Property |
|---|---|
| Plug Housing Material | Polycarbonate |
| Contact Blade Material | Phosphor Bronze (CuSn6) |
| Contact Area Plating | 0.7 µm Selective Gold Plate |
| Connector Shield Material | Tin-Plated Brass |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Interface Standard | Compliant with IEC 60603-7 |
| Operating Temperature | -10°C to +60°C |
| Integrated Cable Boot | Wide-Function Strain Relief |
Electrical Characteristics
| Electrical Parameter | Standard / Test Rating | Performance Value |
|---|---|---|
| Current Rating | Maximum @ 25°C | 1.5 Amps |
| Voltage Rating | Maximum Capacity | 150 VAC |
| Dielectric Withstanding | 1 Minute Test (60 Hz) | 1000 VAC |
| Insulation Resistance | Minimum Threshold | 650 MΩ |
Key Features
- Category 6A Performance: Supports Category 6A Class E performance requirements in accordance with ISO/IEC 11801 while supporting operating frequencies up to 500 MHz for reliable Gigabit Ethernet connectivity.
- LSZH Fire Safety: The Low Smoke Zero Halogen jacket minimizes smoke and hazardous gas emissions during fire incidents, protecting both personnel and networking equipment.
- Backward Compatibility: Fully compatible with existing Cat5e infrastructures, enabling smooth and cost-effective network upgrades.
- Enhanced Strain Relief: Features a wide-function strain relief boot that supports cable labeling and color identification while protecting against cable stress.
- Factory-Tested Quality: Each patch cord is individually tested and marked with a quality stamp to ensure consistent electrical performance and long-term reliability.
Recommended Applications
- High-Density Enterprise Data Centers
- Server Rack Interconnections
- Network Switches, Routers, and Telecommunications Equipment
- Patch Panel Connections
- Commercial Office Networks
- Corporate LAN Systems
- IT Rooms
- Hospitals
- Educational Institutions
- Government Facilities
- Gigabit Ethernet and Category 6A Structured Cabling Installations
Quality Assurance
Manufactured in accordance with internationally recognized structured cabling standards, the ProLink CAT6A Patch Cord 1m LSZH Blue is factory-tested to deliver dependable Category 6A performance, stable electrical characteristics, and the durability required for modern enterprise networking environments.
