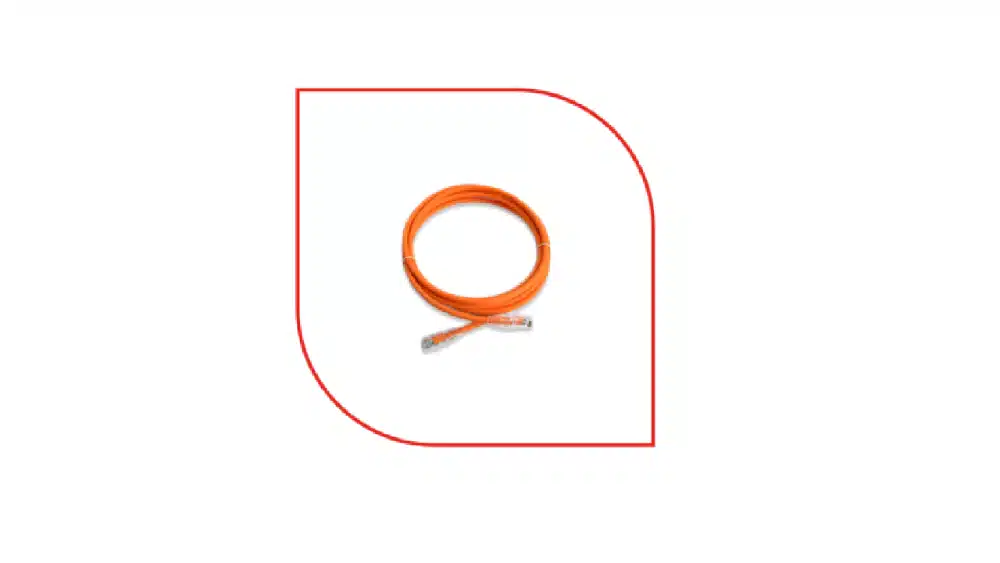

ProLink CAT6A Patch Cord 1m LSZH Orange (Model: PL-PC-U6A-1OR) is a professional Category 6A U/UTP Ethernet patch cord designed for structured cabling systems. Measuring 1 meter in length, this high-visibility orange patch cord provides clean connections between patch panels, network switches, routers, and telecommunications outlets while minimizing unnecessary cable slack. Supporting operating frequencies up to 500 MHz, it features a Low Smoke Zero Halogen (LSZH) jacket that enhances indoor fire safety, making it an ideal solution for enterprise LANs, commercial buildings, and high-density data center environments.
Technical Specifications
| Component / Property | Technical Specification |
|---|---|
| Product Name | ProLink CAT6A Patch Cord 1m LSZH Orange |
| Model / SKU | PL-PC-U6A-1OR |
| Cable Length / Color | 1 Meter / Orange |
| Wiring Configuration | T568B Standard |
| Cable Type / Shielding | U/UTP (Unshielded) |
| Conductor Gauge | AWG23/7 Stranded Conductor |
| Number of Pairs | 4 Pairs |
| Nominal Impedance | 100 Ohms |
| Outer Cable Diameter | Maximum 6.0 mm |
Mechanical Specifications
| Component / Material | Operational Rating / Property |
|---|---|
| Plug Housing Material | Polycarbonate |
| Contact Blade Material | Phosphor Bronze (CuSn6) |
| Contact Area Plating | 0.7 µm Selective Gold Plate |
| Connector Shield Material | Tin-Plated Brass |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Interface Standard | Compliant with IEC 60603-7 |
| Operating Temperature | -10°C to +60°C |
| Integrated Cable Boot | Wide-Function Strain Relief |
Electrical Characteristics
| Electrical Parameter | Standard / Test Rating | Performance Value |
|---|---|---|
| Current Rating | Maximum @ 25°C | 1.5 Amps |
| Voltage Rating | Maximum Capacity | 150 VAC |
| Dielectric Withstanding | 1 Minute Test (60 Hz) | 1000 VAC |
| Insulation Resistance | Minimum Threshold | 650 MΩ |
Key Features
- Category 6A Performance: Supports Category 6A Class E performance requirements in accordance with ISO/IEC 11801 while supporting high-speed Ethernet applications operating up to 500 MHz.
- LSZH Fire Safety: The Low Smoke Zero Halogen jacket minimizes smoke and toxic gas emissions during fire incidents, enhancing safety in enclosed commercial and enterprise environments.
- Backward Compatibility: Fully compatible with Cat5e network infrastructures, allowing cost-effective migration to higher-performance Category 6A networks.
- Enhanced Strain Relief: The wide-function cable boot protects the cable against bending stress while supporting cable labeling and color identification for simplified cable management.
- Factory-Tested Quality: Each patch cord is individually tested for signal integrity and electrical performance to help ensure reliable operation in professional networking environments.
Recommended Applications
- Enterprise Server Rack Interconnections
- High-Density Data Center Patching
- Patch Panels and Telecommunications Outlets
- Network Switches, Routers, and Firewalls
- Commercial Office LAN Infrastructure
- Corporate Structured Cabling Systems
- Healthcare Facilities
- Educational Institutions
- Government Buildings
- Gigabit Ethernet and Category 6A Network Installations
Quality Assurance
Manufactured in accordance with internationally recognized structured cabling standards, the ProLink CAT6A Patch Cord 1m LSZH Orange is factory-tested to deliver consistent Category 6A performance, dependable electrical characteristics, and long-term durability for professional networking environments.
