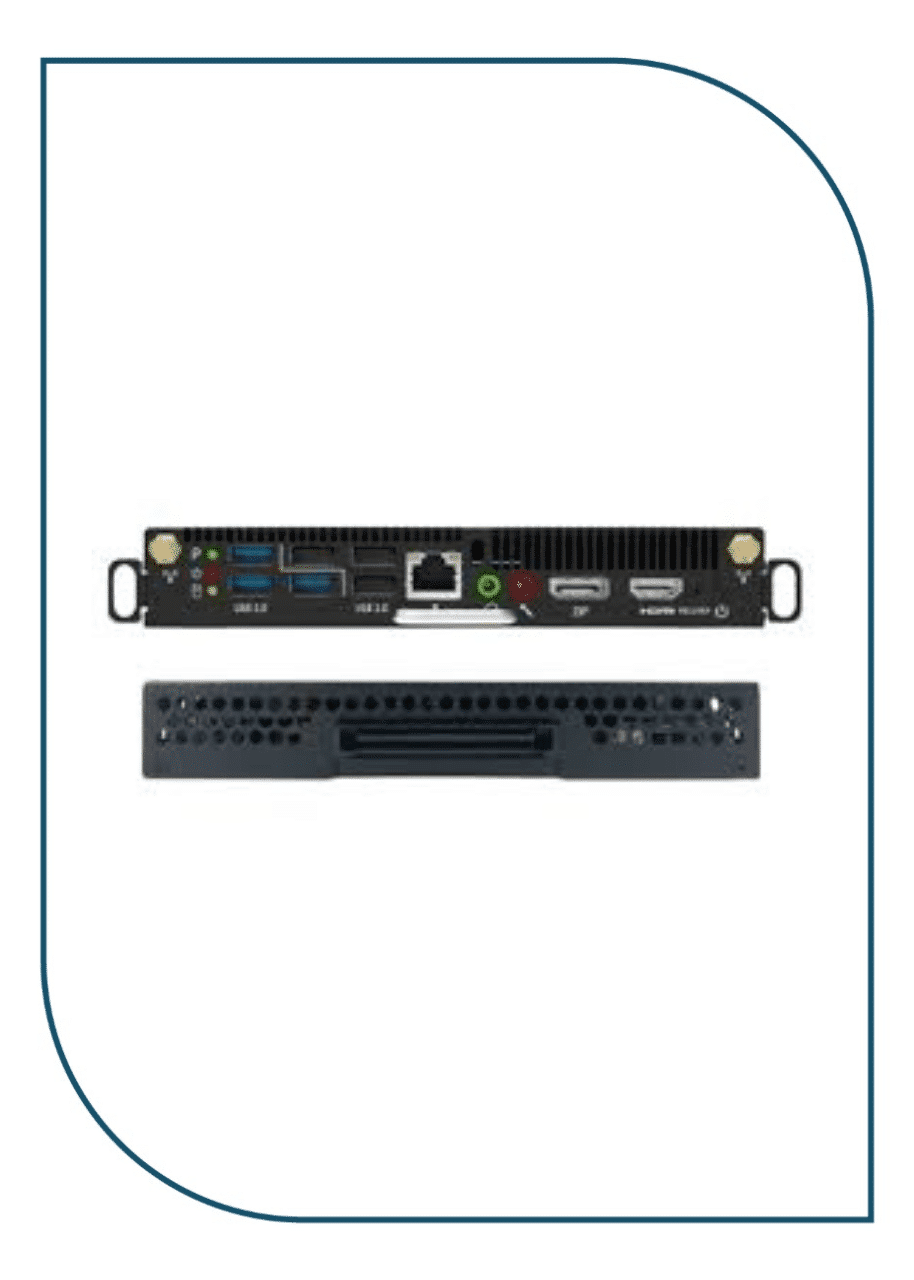

Huawei IdeaHub OPS i7 Windows 10 IoT PC Module (Model: ICD OPS i7 D) is a high-performance slide-in Open Pluggable Specification (OPS) computer engineered with an 8-core Intel Core i7 processor, 16GB DDR4 RAM, and a 512GB SSD to deliver extreme computing power and dual-OS capability on IdeaHub displays. It features Windows 10 IoT Enterprise SAC, Intel UHD Graphics 630 with 4K UHD 60fps output, and an 80-pin JAE interface connector.
Designed for demanding multi-tasking, complex 3D CAD rendering, and intensive video conferencing, it slides directly into the rear expansion slot of IdeaHub displays. It provides Gigabit Ethernet, USB Type-C, USB 3.1, HDMI 2.0 output, and high-speed Wi-Fi connectivity.
Technical Specifications
| Component / Parameter | Technical Specification |
|---|---|
| Product Line | Huawei IdeaHub Modular Computing |
| Model / SKU | ICD OPS i7 D |
| Processor (CPU) | Intel Core i7-10700 Processor (8 Cores, 16 Threads, Up to 4.80 GHz Turbo) |
| System Memory (RAM) | 16 GB DDR4 High-Performance Memory |
| Storage Capacity | 512 GB High-Speed M.2 NVMe Solid-State Drive (SSD) |
| Operating System | Windows 10 IoT Enterprise SAC Pre-Installed and Licensed |
| Hardware Connector | Standard 80-Pin JAE Open Pluggable Specification (OPS) Interface |
| Graphics Output | Intel UHD Graphics 630 with 4K UHD 60fps Hardware Acceleration |
| I/O Connectivity | USB 3.1 Ports, USB Type-C, HDMI 2.0 Output, Gigabit RJ45, Audio In/Out |
Mechanical & Environmental Specifications
| Parameter / Feature | Specification / Rating |
|---|---|
| Form Factor | Standard OPS Slide-In Module (195mm × 180mm × 30mm) |
| Heat Dissipation Mode | Internal Quiet Blower Heat Dissipation |
| Acoustic Profile | Low-Noise Operation |
| Chassis Construction | Industrial-Grade Aluminum Alloy Shell |
| Power Input | Direct DC Power from Display Host OPS Slot |
Key Features & Highlights
- Intel Core i7 8-Core Power: Exceptional performance for 3D modeling, simulation software, and heavy multi-tasking.
- Generous 16GB RAM & 512GB SSD: Ultra-fast data access and ample storage for large project files and recordings.
- Standard 80-Pin OPS Slot: Seamless integration without unsightly cables, power bricks, or external switchers.
- Pre-Activated Windows 10 IoT: Certified enterprise stability, Group Policy compliance, and corporate software compatibility.
- 4K UHD 60fps Acceleration: Smooth rendering of 4K video feeds, animations, and high-resolution CAD files.
- Advanced Connectivity: Includes USB Type-C, USB 3.1, HDMI output, Gigabit LAN, and dual external Wi-Fi antennas.
Recommended Applications
The Huawei IdeaHub High-End OPS i7 Windows PC Module is engineered for access and aggregation scenarios across commercial environments:
- Heavy 3D modeling, BIM, and CAD software manipulation (Autodesk AutoCAD, Revit, SolidWorks) on IdeaHub screens.
- Hosting high-demand native Windows conferencing sessions including Microsoft Teams Rooms and Zoom Rooms.
- Complex enterprise big data analytics and interactive PowerBI dashboard manipulation in executive boardrooms.
- Higher education research labs running computational simulations and specialized interactive software.
- Command center visualization consoles requiring maximum CPU responsiveness and multi-threaded throughput.
Installation & Operating Environment
The Huawei IdeaHub High-End OPS i7 Windows PC Module slides directly into the dedicated rear OPS slot of Huawei IdeaHub displays and fastens securely with two captive thumb screws. Power and display connections are routed internally through the 80-pin JAE connector, eliminating external power supplies and video cables.
