Huawei IdeaHub S3 86-Inch Smart Collaboration Board (Model: IHS3-86SA) is a flagship large-format interactive display engineered with an 86-inch 4K D-LED panel, an AI 4K conference camera, and 16ms writing latency to deliver maximum visual impact in auditoriums and large boardrooms. It features 3840 × 2160 4K UHD resolution, zero-gap optical bonding, anti-blue light certification, and an integrated 12-meter sound pickup microphone array.
Powered by HarmonyOS with optional modular Windows OPS PC computing, the board delivers BYOM wireless conferencing, 4K P2P projection, intelligent OCR handwriting recognition, and multi-party cloud video conferencing. Interfaces include full-function USB Type-C, HDMI 2.0 In/Out, USB 3.0, and Gigabit LAN.
Technical Specifications
| Component / Parameter | Technical Specification |
|---|---|
| Product Line | Huawei IdeaHub S3 Series |
| Model / SKU | IHS3-86SA |
| Screen Size & Type | 86-Inch 4K UHD (3840 × 2160) Anti-Glare D-LED Panel |
| Writing Latency | 16ms Ultra-Low Latency Whiteboard Writing |
| Integrated Camera | 4K UHD AI Video Camera with Auto-Framing and Voice Tracking |
| Acoustic System | Beamforming Microphone Array (12-Meter Pickup) + Hi-Fi Stereo Speakers |
| Projection Features | 4K P2P Wireless Projection, IdeaShare Key, BYOM Conferencing |
| Operating System | HarmonyOS + Optional Modular Windows OPS PC Slot |
| Connectivity Ports | USB Type-C (Full Function), HDMI 2.0 In/Out, USB 3.0, Gigabit LAN |
| Eye Protection | TÜV Rheinland Certified Optical Anti-Blue Light Protection |
Mechanical & Environmental Specifications
| Parameter / Feature | Specification / Rating |
|---|---|
| Form Factor | 86-Inch Wall Mount or Rolling Floor Stand Installation |
| Heat Dissipation Mode | Natural Heat Dissipation |
| Acoustic Profile | Noise-Free Operation |
| Chassis Construction | Heavy-Duty Aluminum Alloy Frame and Anti-Glare Glass |
| Power Supply | Internal Universal AC Power Supply (100V to 240V AC) |
Key Features & Highlights
- Massive 86-Inch 4K UHD Screen: Delivers breathtaking 3840 × 2160 visual clarity for large-scale audience presentations.
- AI Voice Tracking 4K Camera: Automatically detects, tracks, and frames active speakers in large conference halls.
- 16ms Ultra-Low Writing Latency: Highly responsive whiteboard with dual-pen annotation and smart graphics recognition.
- 4K P2P Wireless Projection: Instantly stream 4K presentations from PCs, smartphones, and tablets without dongles.
- BYOM Wireless Integration: Route room video camera and beamforming audio directly into personal video meetings.
- Dual-System Modular OS: Runs smooth HarmonyOS with optional plug-in Windows OPS PC for enterprise applications.
Recommended Applications
The Huawei IdeaHub S3 86-Inch Smart Collaboration Board is engineered for access and aggregation scenarios across commercial environments:
- Large executive boardrooms and town hall auditoriums delivering commanding 86-inch visual presentations.
- Enterprise training centers and lecture halls hosting interactive webinars and hybrid classes.
- Command, control, and dispatch briefing rooms displaying high-resolution mapping and operational data.
- Healthcare auditorium review sessions presenting complex 4K surgical video and radiology files.
- Multi-purpose conference halls requiring combined 4K smart whiteboarding and AI-tracked video conferencing.
Installation & Operating Environment

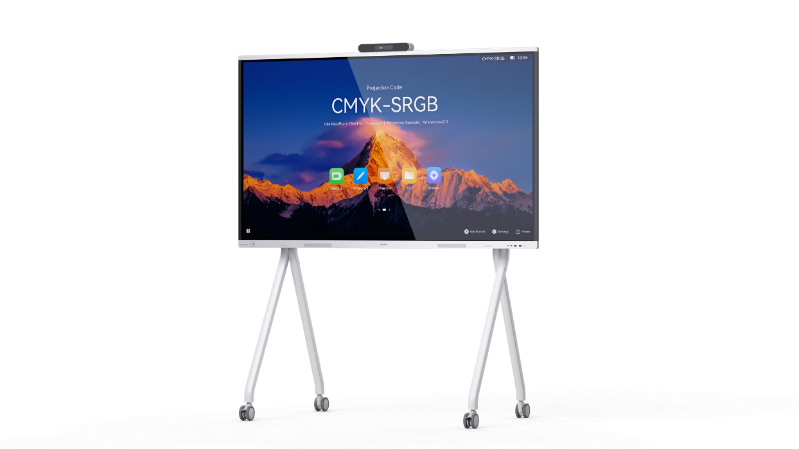

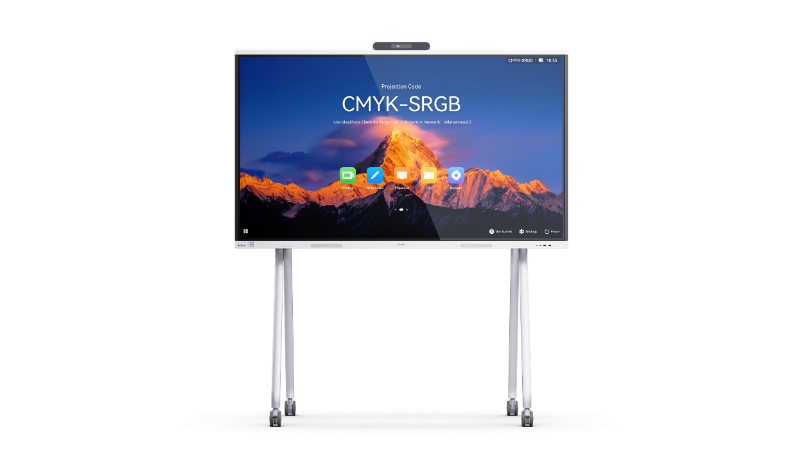

The Huawei IdeaHub S3 86-Inch Smart Collaboration Board is designed for wall mounting or mobile rolling floor stand deployment. Supplied with two magnetic stylus pens, power cable, and wall-mounting bracket kit, it operates from 100V to 240V AC with natural heat dissipation for quiet, continuous operation in large conference spaces.
