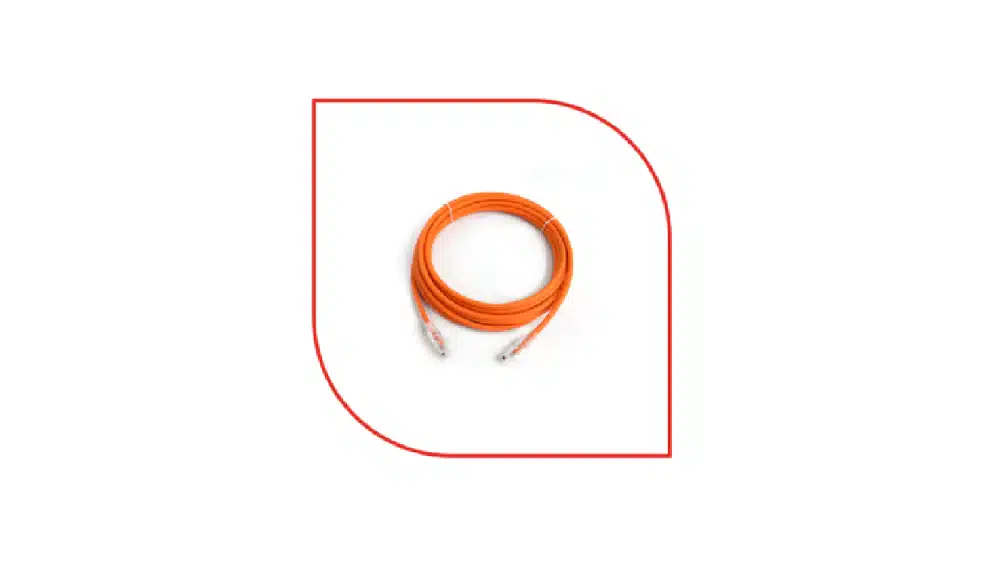

The ProLink CAT6A Patch Cord 3m LSZH Orange (Model: PL-PC-U6A-3OR) is a commercial-grade Category 6A U/UTP Ethernet patch cord engineered for professional structured cabling systems. Measuring 3 meters in length, this high-visibility orange patch cord provides reliable connections between network equipment, patch panels, and telecommunications outlets across standard rack distances while supporting Ethernet applications operating up to 500 MHz. Featuring a Low Smoke Zero Halogen (LSZH) jacket, it enhances fire safety and is an ideal solution for enterprise LANs, commercial buildings, and high-density data centers.
Technical Specifications
| Component / Property | Technical Specification |
|---|---|
| Product Line | ProLink CAT6A Patch Cord 3m LSZH Orange |
| Model / SKU | PL-PC-U6A-3OR |
| Cable Length / Color | 3 Meters / Orange |
| Wiring Configuration | T568B Standard |
| Cable Type / Shielding | U/UTP (Unshielded) |
| Conductor Gauge | AWG23/7 Stranded Conductor |
| Number of Pairs | 4 Pairs |
| Nominal Impedance | 100 Ohms |
| Outer Cable Diameter | Maximum 6.0 mm |
Mechanical Specifications
| Component / Material | Operational Rating / Property |
|---|---|
| Plug Housing Material | Polycarbonate |
| Contact Blade Material | Phosphor Bronze (CuSn6) |
| Contact Area Plating | 0.7 µm Selective Gold Plate |
| Connector Shield Material | Tin-Plated Brass |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Interface Standard | Compliant with IEC 60603-7 |
| Operating Temperature | -10°C to +60°C |
| Integrated Cable Boot | Wide-Function Strain Relief |
Electrical Characteristics
| Electrical Parameter | Standard / Test Rating | Performance Value |
|---|---|---|
| Current Rating | Maximum @ 25°C | 1.5 Amps |
| Voltage Rating | Maximum Capacity | 150 VAC |
| Dielectric Withstanding | 1 Minute Test (60 Hz) | 1000 VAC |
| Insulation Resistance | Minimum Threshold | 650 MΩ |
Key Features
- Category 6A Compliance: Meets Category 6A Class E requirements in accordance with ISO/IEC 11801 while supporting Ethernet applications operating up to 500 MHz.
- LSZH Fire Safety: The Low Smoke Zero Halogen jacket helps reduce smoke density and toxic gas emissions during fire incidents, improving safety for personnel and network infrastructure.
- Backward Compatibility: Fully compatible with existing Cat5e network infrastructures, allowing cost-effective migration to Category 6A networks.
- Enhanced Strain Relief: Features a wide-function strain relief boot that supports cable labeling and color identification while protecting against cable stress.
- Factory-Tested Quality: Each patch cord is individually tested for electrical performance and signal integrity before shipment to ensure consistent reliability.
Recommended Applications
- Enterprise LAN Infrastructure
- High-Density Data Center Patching
- Server Rack Interconnections
- Patch Panels and Telecommunications Outlets
- Network Switches, Routers, and Firewalls
- Commercial Office Networks
- Educational Institutions
- Healthcare Facilities
- Category 6A Structured Cabling Systems
Quality Assurance
Manufactured in accordance with internationally recognized structured cabling standards, the ProLink CAT6A Patch Cord 3m LSZH Orange is factory-tested to deliver consistent Category 6A performance, reliable electrical characteristics, and long-term durability for professional networking environments.
